MDW European Grinding Mill Materials

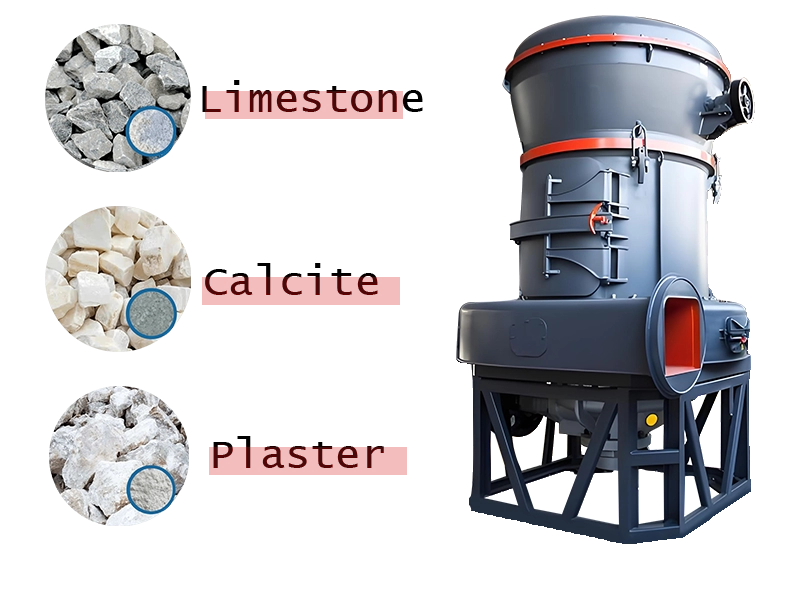

The MDW European Grinding Mill is suitable for limestone, calcite, calcium carbonate, dolomite, barite, talc, gypsum, diabase, quartz stone, bentonite and other materials.
MDW European Grinding Mill Application
The MDW European Grinding Mill is widely used in cement, new building materials, refractory materials, fertilizers, metal ore dressing, glass and ceramics, power plant desulfurization, non-metallic mineral powder making and building materials and chemical industries.
MDW European Grinding Mill Features
High efficiency and energy saving
Adopting advanced design and technology, the grinding efficiency is improved and the energy consumption is reduced.
Strong stability
Reasonable structural design, stable operation and low failure rate.
MDW European Grinding Mill Working Principle
- 1. Feeding: Materials are processed and fed into the grinding chamber via variable frequency belt feeder.
- 2. Grinding: High-speed rotation of rollers and rings grinds materials into fine powder.
- 3. Classification: Airflow carries powder to the selector; coarse particles return for re-grinding.
- 4. Collection & Discharge: Qualified powder is separated by cyclone and discharged.
Technical Parameters
| Model | Feed Particle Size (mm) | Finished Product Particle Size (mm) | Production Capacity (t/h) | Main Motor Power (kW) | Fan Motor Power (kW) | Powder Selector Motor Power (kW) | Electromagnetic Vibrating Feeder Model | Electromagnetic Vibrating Feeder Power (kW) |
| MDW110 | <30 | 1.6-0.045, 0.038 | 3-9 | 55 | 55 | 7.5 | GZ2F | 0.15 |
| MDW138 | <35 | 1.6-0.045, 0.038 | 6-17 | 90 | 110 | 18.5 | GZ3F | 0.2 |
| MDW215 | <50 | 1.6-0.05, 0.038 | 15-45 | 280 | 315 | 55 | GZ5F | 0.65 |
| MDW198 | <45 | 1.6-0.05, 0.038 | 12-33 | 220 | 250 | 37 | GZ4F | 0.65 |
“Twenty years of technology accumulation, is your reliable choice.”
— DingBO,DBM
